ALS-040-R

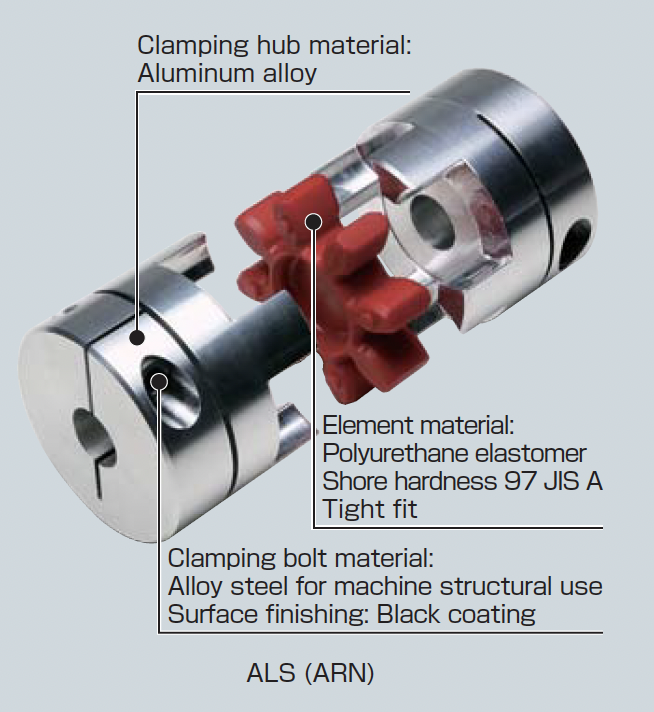

Miki Pulley Starflex jaw coupling with R element (97 JIS A polyurethane, tight-fit construction).
Starflex ALS-R
ALS-040-R
Jaw coupling with polyurethane elastomer R element (97 JIS A, tight-fit / pre-compressed element).
Qualifications
Engineering qualifications
- Negative-direction axial displacement is not allowed.
- Maximum rotation speed does not account for dynamic balance.
- Stiffness values are measured at 20 deg C.
- Inertia and mass are measured at maximum bore diameter.
- Numeric bore entries are standard supported bore diameters restricted in rated transmission torque by shaft-connection holding power.
- Bores between minimum and maximum shown in the dimensions table may be compatible; unlisted bore arrangements require manufacturer consultation.
- Recommended paired-shaft tolerance is h7, with documented special tolerance for bore 35 mm where applicable.
- B = clamp type hub; R = element hardness 97 JIS A tight-fit type.
Performance specifications
| Parameter | Value |
|---|---|
| Parallel misalignment | 0.10 mm |
| Angular misalignment | 1 deg |
| Axial displacement | 0 to +1.2 mm |
| Maximum rotation speed | 10000 min-1 |
| Static torsional stiffness | 1550 N m/rad |
| Radial stiffness | 1700 N/mm |
| Moment of inertia (max bore) | 4.01E-05 kg m2 |
| Mass (max bore) | 0.16 kg |
Dimensions (mm)
| Value | Dimension |
|---|---|
| 8-20 | d1/d2 bore range |
| 40 mm | D |
| 43.2 mm | DB |
| 66 mm | L |
| 25 mm | L1/L2 |
| 16 mm | E |
| 2 mm | S |
| 12.5 mm | B |
| 15 mm | G |
| 1-M5 | M |
| 7 N m | Tightening torque |
Standard bore diameters and rated transmission torque
| Bore (mm) | Rated transmission torque (N m) |
|---|---|
| 8 | 8 |
| 9 | 12 |
| 10 | 14 |
| 11 | 16 |
| 12 | 19 |
| 14 | 23 |
| 15 | 31 |
| 16 | 34 |
| 18 | 34 |
| 20 | 34 |
