ZA Series Line Shafts Couplings

R+W Line Shafts Couplings

  • Torque ratings from 10 Nm to 4,000 Nm

  • Mounts and dismounts without moving aligned shafts

  • No intermediate support bearings required

  • Torsionally rigid models and elastic models (4 types of elastomer

    • insert) available

      • Torsionally rigid models from 100 mm to 6 m in length

      • Elastic models from 95 mm to 4 m in length (variable length

      • model available)

    • Can be connected via:

      • Clamping hub

      • Split clamping hub

      • Tapered conical sleeves

  • Bores from 5 mm to 100 mm

  • Temperature range of -30° to +120°C (dependent on elastomer

  • insert for elastic models)


ZA EZ2 EZV ZAE - Linear Couplings

Importers Distributors


Clamping Hub

R+W ZA Clamping Type Hub Coupling

Tapered Conical Sleeves

Tapered Conical Sleeves

R+W ZA Tapered Conical Coupling

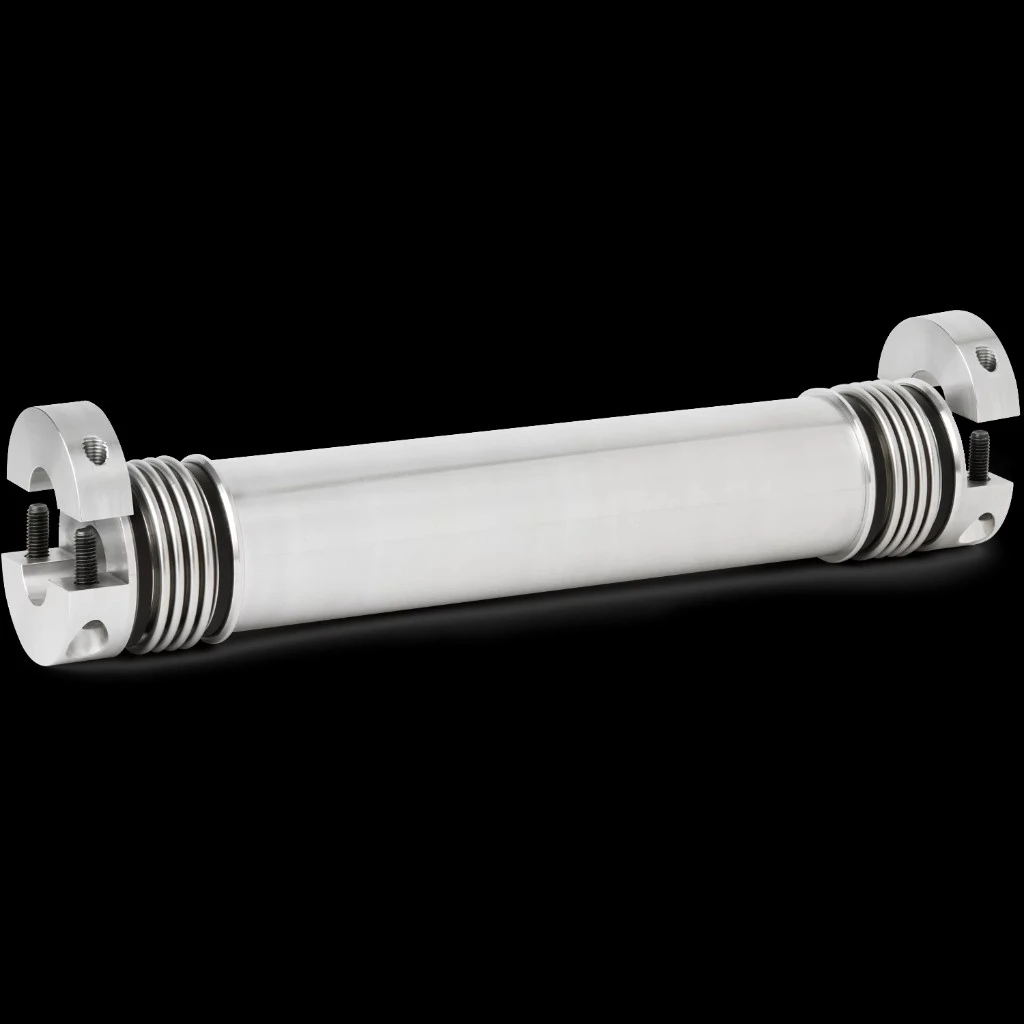

Split Hub

R+W ZAE Split Hub Type Coupling

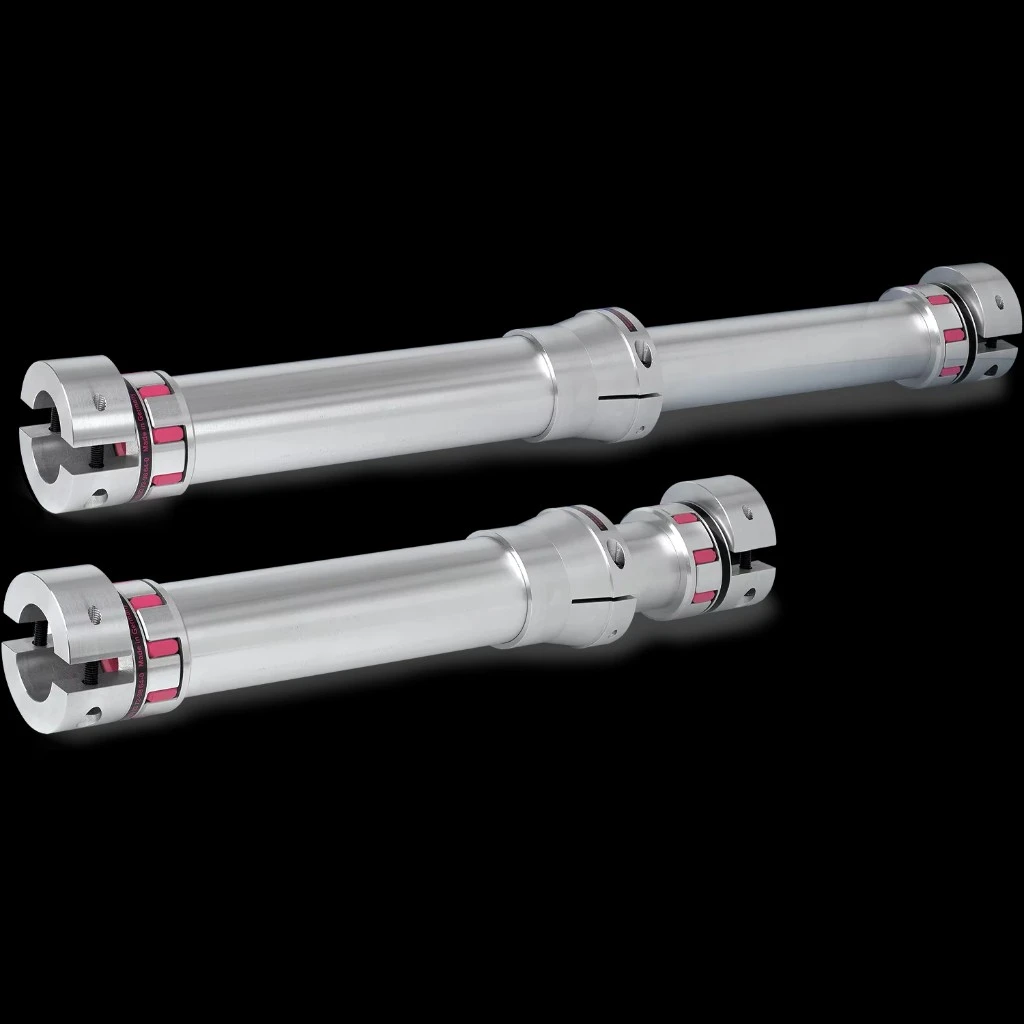

Adjustable Length Line Shaft

R+W EZV Type Coupling

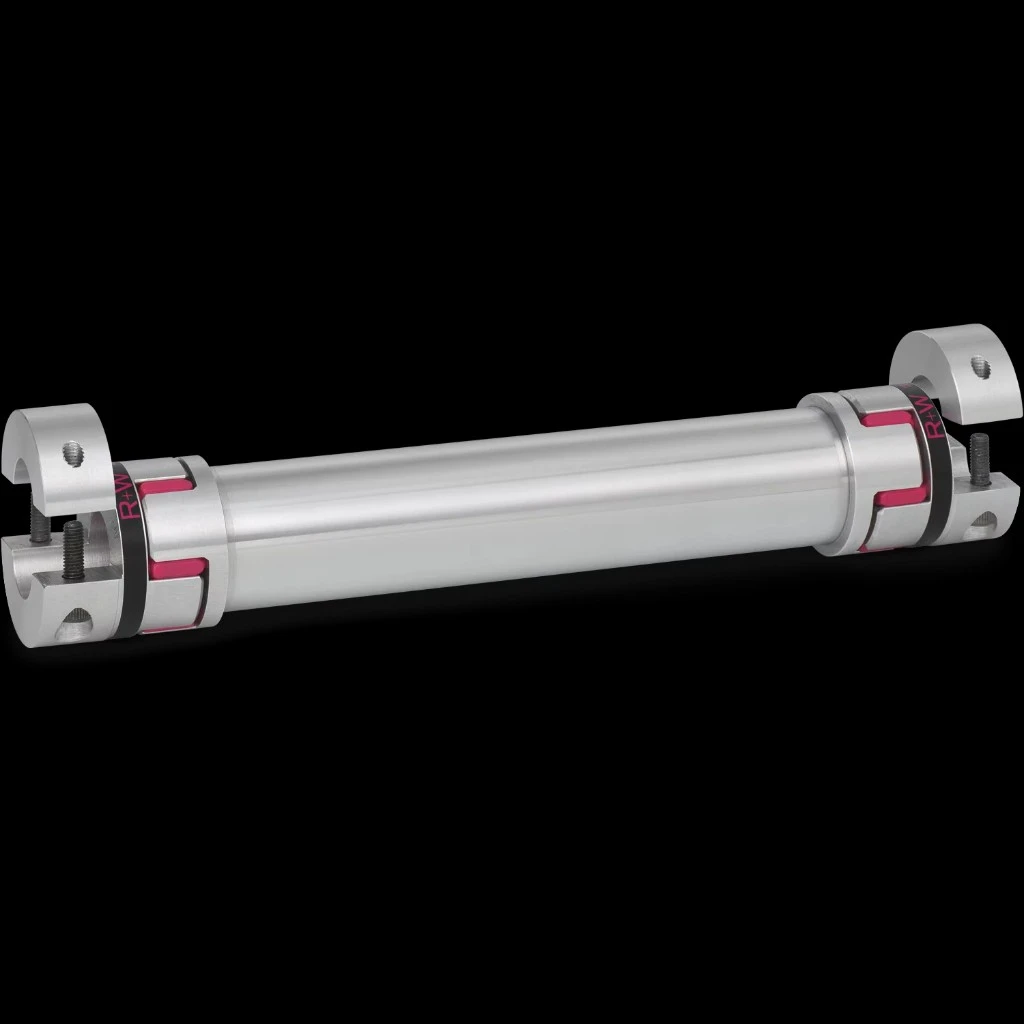

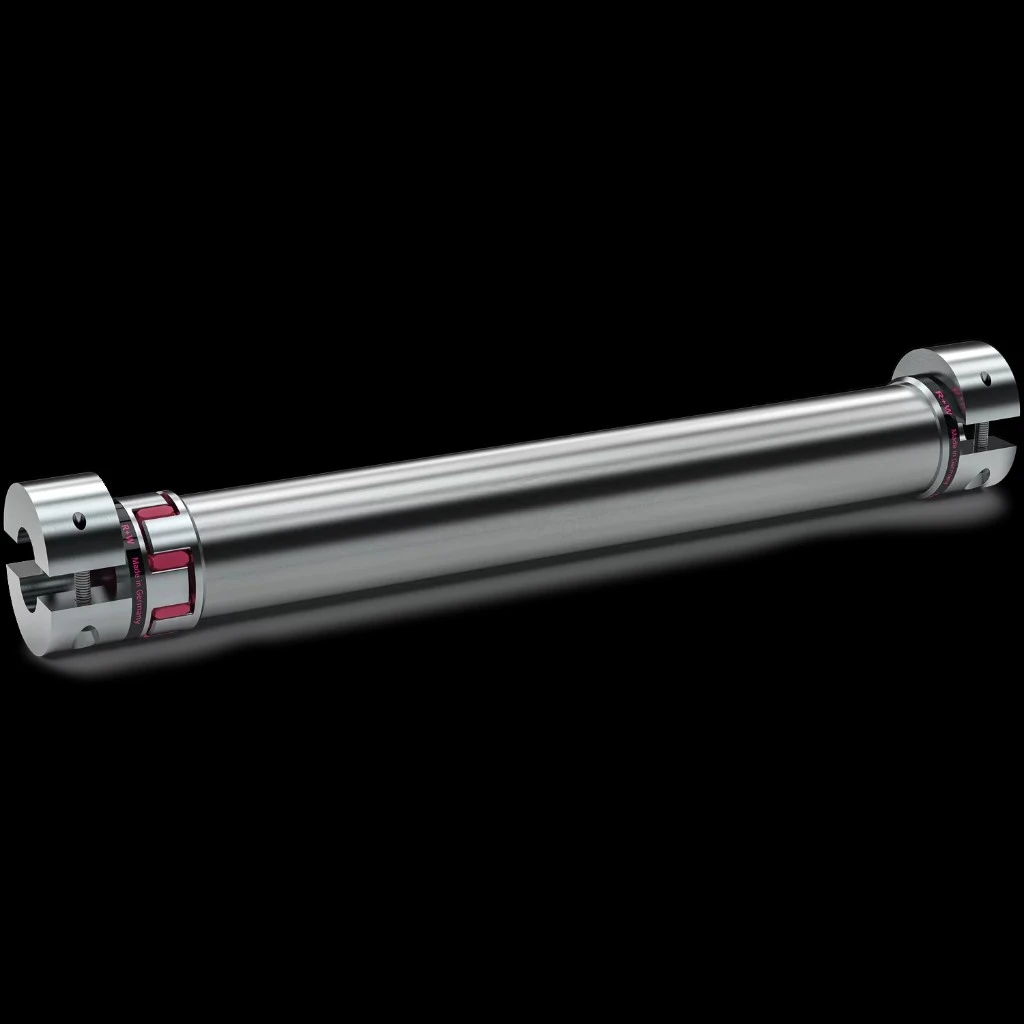

Line Shaft With Split Clamping Hub

R+W EZ2 Type Coupling
R+W ZA EZ Series Line Shafts Couplings
