Dodge Industrial

Dodge Raptor Elastomeric Couplings

Dodge Raptor split-tire elastomeric couplings within the Dodge Industrial (RBC Bearings) portfolio. Engineering selection for pumps, fans and general industrial drives.

Authorised Distributor

Dodge Industrial

an RBC Bearings company

Overview

Dodge Raptor overview

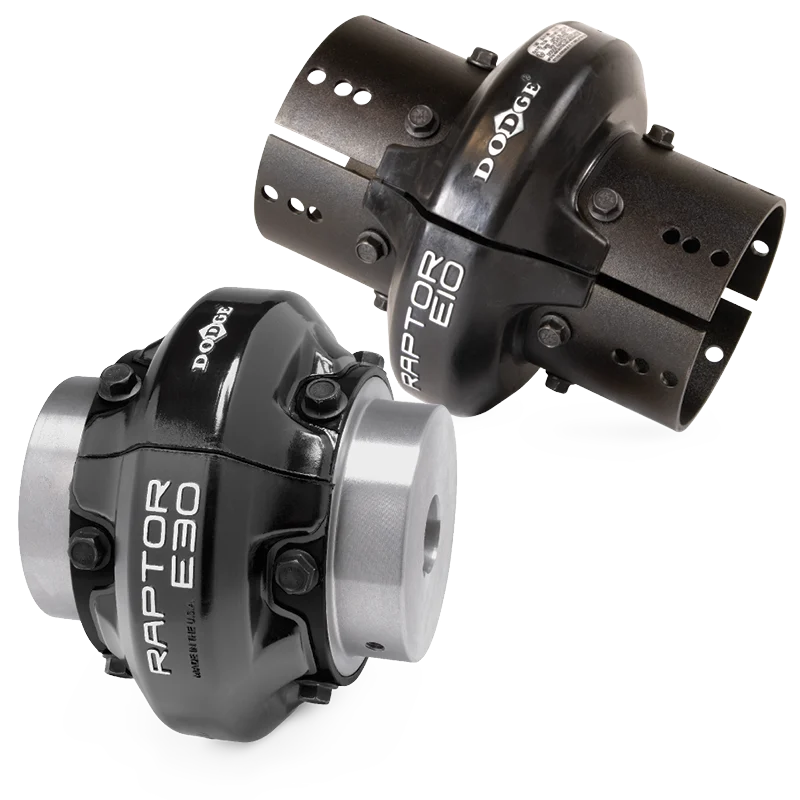

Dodge Raptor couplings are elastomeric split-tire flexible couplings within the Dodge Industrial coupling portfolio. Raptor transmits torque through a replaceable elastomer tire element between two hub halves for pumps, fans, conveyors and general motor-driven equipment.

Dodge Industrial is an RBC Bearings company — not part of Regal Rexnord. Golden Bearing Company supports Raptor selection as an authorised Dodge Industrial distributor.

Family context

Product role within Dodge couplings

Raptor sits alongside other Dodge elastomeric families such as D-Flex. Selection follows Dodge catalogue size designations, bore capacity and duty ratings. Confirm configuration (close-coupled or extended) against equipment layout.

Identification & interchange

Engineering interchange note (Rexnord Omega)

Manufacturer engineering documentation documents manufacturer cross-reference relationships between Dodge Raptor and Rexnord Omega for documented size classes, subject to torque, bore and service-factor verification.

The governed Raptor interchange reference table on this page lists same-designation mappings for E2 through E140 against Rexnord Omega and TB Woods Dura-Flex WE2 through WE80 where documented.

This is not a universal interchange claim, guaranteed replacement, superiority statement or commercial authorisation merge. Dodge and Regal Rexnord remain separate distributor relationships. For Omega family context, see Rexnord Omega elastomeric couplings.

Selection factors

Selection factors

Motor torque and driven-equipment service factor

Maximum bore versus both shaft sizes

Speed, misalignment limits and environment

Close-coupled versus spacer maintenance layout

Whether documented cross-reference to Omega is relevant to your installed coupling

Authorised distributor quotation

Send installed coupling designation, bore sizes and duty data for Raptor size review. Contact Golden Bearing Company for engineering enquiry support.

Request engineering support

Engineering interchange

Raptor interchange reference table

Same-designation interchange reference for documented Raptor size classes. This table documents designation-level cross-reference only - not torque, bore, speed or dimensional equivalence.

TB Woods Dura-FlexDodge RaptorRexnord OmegaVerification
WE2E2E2Engineering review required
WE3E3E3Engineering review required
WE4E4E4Engineering review required
WE5E5E5Engineering review required
WE10E10E10Engineering review required
WE20E20E20Engineering review required
WE30E30E30Engineering review required
WE40E40E40Engineering review required
WE50E50E50Engineering review required
WE60E60E60Engineering review required
WE70E70E70Engineering review required
WE80E80E80Engineering review required
-E100E100Engineering review required
-E120E120Engineering review required
-E140E140Engineering review required

Torque and bore capacity must be verified before accepting downsizing or cross-manufacturer substitution. Motor torque multiplied by driven-equipment service factor must be compared against manufacturer ratings. Interchange does not imply authorization merge, inventory availability or performance equivalence between Dodge Industrial, Regal Rexnord or TB Woods.

See E-series product catalogue and ES-series product catalogue below for size-class ratings and primary part numbers.

For Rexnord Omega family context see Rexnord Omega elastomeric couplings. Dodge Industrial and Regal Rexnord remain separate authorised distributor relationships.

Standard close-coupled E series

Product detail pages for Raptor E2 through E140 with catalogue ratings and interchange reference.

E2
Max. torque 194 in-lbs RSB max. bore 1.13 in Max. RPM 6600 RPM
Standard Element P/N 015843 View E-series PDP E3
Max. torque 371 in-lbs RSB max. bore 1.38 in Max. RPM 6600 RPM
Standard Element P/N 015844 View E-series PDP E4
Max. torque 558 in-lbs RSB max. bore 1.63 in Max. RPM 6600 RPM
Standard Element P/N 015845 View E-series PDP E5
Max. torque 926 in-lbs RSB max. bore 1.88 in Max. RPM 6600 RPM
Standard Element P/N 015846 View E-series PDP E10
Max. torque 1456 in-lbs RSB max. bore 2.13 in Max. RPM 6600 RPM
Standard Element P/N 015847 View E-series PDP E20
Max. torque 2308 in-lbs RSB max. bore 2.38 in Max. RPM 6600 RPM
Standard Element P/N 015848 View E-series PDP E30
Max. torque 3651 in-lbs RSB max. bore 2.88 in Max. RPM 5800 RPM
Standard Element P/N 015849 View E-series PDP E40
Max. torque 5504 in-lbs RSB max. bore 3.38 in Max. RPM 5000 RPM
Standard Element P/N 015850 View E-series PDP E50
Max. torque 7656 in-lbs RSB max. bore 3.63 in Max. RPM 4200 RPM
Standard Element P/N 015851 View E-series PDP E60
Max. torque 12505 in-lbs RSB max. bore 4.00 in Max. RPM 3800 RPM
Standard Element P/N 015852 View E-series PDP E70
Max. torque 22132 in-lbs RSB max. bore 4.50 in Max. RPM 3600 RPM
Standard Element P/N 015853 View E-series PDP E80
Max. torque 39503 in-lbs RSB max. bore 6.00 in Max. RPM 2000 RPM
Standard Element P/N 015854 View E-series PDP E100
Max. torque 85085 in-lbs RSB max. bore 6.75 in Max. RPM 1900 RPM
Standard Element P/N 015931 View E-series PDP E120
Max. torque 170170 in-lbs RSB max. bore 7.50 in Max. RPM 1800 RPM
Standard Element P/N 015932 View E-series PDP E140
Max. torque 340340 in-lbs RSB max. bore 9.00 in Max. RPM 1500 RPM
Standard Element P/N 015933 View E-series PDP

Spacer ES series

Product detail pages for Raptor ES2 through ES80 spacer configurations with BSE ranges and interchange reference.

ES2
Max. torque 194 in-lbs BSE max. 4.56 in Max. RPM 6600 RPM
Standard Full Spacer P/N 017064 View ES-series PDP ES3
Max. torque 371 in-lbs BSE max. 5.51 in Max. RPM 6600 RPM
Standard Full Spacer P/N 017065 View ES-series PDP ES4
Max. torque 558 in-lbs BSE max. 5.51 in Max. RPM 6600 RPM
Standard Full Spacer P/N 017066 View ES-series PDP ES5
Max. torque 926 in-lbs BSE max. 5.51 in Max. RPM 6600 RPM
Standard Full Spacer P/N 017067 View ES-series PDP ES10
Max. torque 1456 in-lbs BSE max. 5.51 in Max. RPM 6600 RPM
Standard Full Spacer P/N 017068 View ES-series PDP ES20
Max. torque 2308 in-lbs BSE max. 7.08 in Max. RPM 4800 RPM
Standard Full Spacer P/N 017069 View ES-series PDP ES30
Max. torque 3651 in-lbs BSE max. 7.08 in Max. RPM 4200 RPM
Standard Full Spacer P/N 017070 View ES-series PDP ES40
Max. torque 5504 in-lbs BSE max. 7.08 in Max. RPM 3600 RPM
Standard Full Spacer P/N 017071 View ES-series PDP ES50
Max. torque 7656 in-lbs BSE max. 7.08 in Max. RPM 3100 RPM
Standard Full Spacer P/N 017072 View ES-series PDP ES60
Max. torque 12505 in-lbs BSE max. 9.84 in Max. RPM 2800 RPM
Standard Full Spacer P/N 017073 View ES-series PDP ES70
Max. torque 22132 in-lbs BSE max. 9.84 in Max. RPM 2600 RPM
Standard Full Spacer P/N 017074 View ES-series PDP ES80
Max. torque 39503 in-lbs BSE max. 9.84 in Max. RPM 1800 RPM
Standard Full Spacer P/N 017075 View ES-series PDP

Raptor selection factors

Dodge product identity

Raptor is a Dodge Industrial elastomeric family under RBC Bearings ownership.

Documented size classes

Interchange evidence is limited to published Raptor/Omega size-class mappings — not all configurations.

Engineering review

Downsizing or cross-manufacturer substitution requires torque and bore verification per manufacturer guidance.
