ManufacturerKTR
GS 7
KTR ROTEX GS size 7 - catalogue torque, bore, speed and dimensional data for industrial drive selection.
Engineering identity

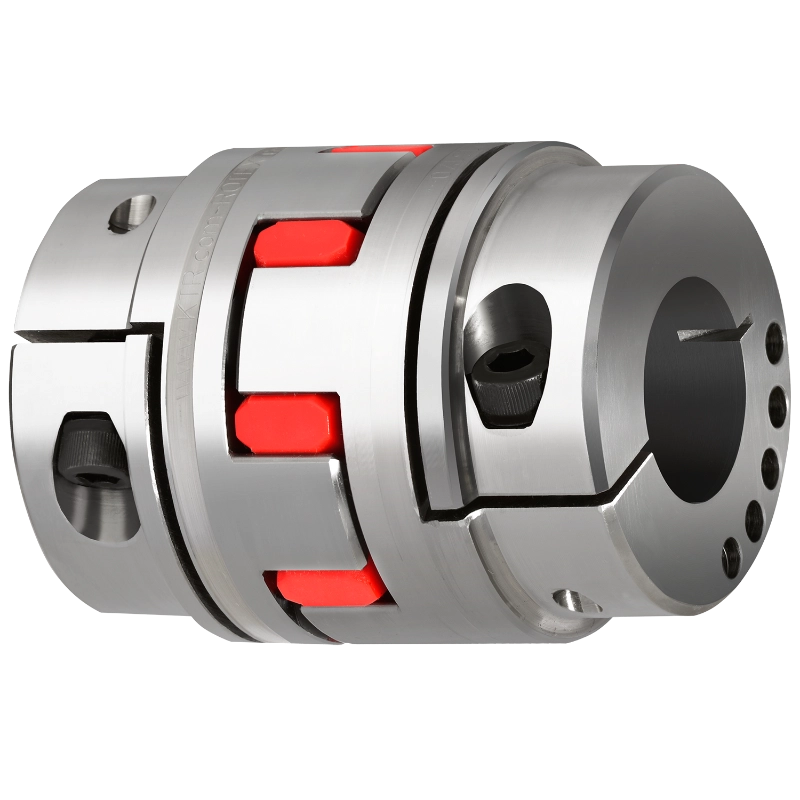

GS 7 is a KTR ROTEX GS backlash-free jaw coupling size in the standard catalogue range. Hub material: Aluminium. Catalogue reference pages: 128, 118.
Key specifications
| Parameter | Value |
|---|---|
| Designation | GS 7 |
| Nominal torque TKN (98 ShA) | 2 Nm |
| Maximum finished bore | 7 mm |
| Maximum speed (Hub 1.0) | 38000 rpm |
| Hub material | Aluminium |
| Outside diameter D_H | 14 mm |
| Overall length L | 22 mm |
| Setscrew size | M3 |
| Setscrew tightening torque T_A | 0.6 Nm |
| Torsional stiffness | 154 Nm/rad (92 ShA spider) |
| Weight | 0.001 kg (spider only) |
Misalignment limits
Values follow catalogue table data. Confirm duty speed and spider selection against application requirements.
| Misalignment limit | Value |
|---|---|
| Axial shift | +0.6 / -0.3 |
| Radial offset | 0.04 mm (64 ShD spider basis per catalogue note) |
| Angular offset | 0.8 deg (64 ShD spider basis per catalogue note) |
Compatible elastomer spiders
Only spiders with catalogue-compatible size ranges are listed. Part numbers are not tabulated in the available catalogue tables.
| Spider | Hardness | Material | Temperature range | Application characteristics |
|---|---|---|---|---|
| 80 ShA-GS | 80 Shore A | Polyurethane | -50 C to +80 C | Exceptional vibration damping; ideal for electrical measuring systems. |
| 92 ShA-GS | 92 Shore A | Polyurethane | -40 C to +90 C | Standard automation, control systems, and main spindle drives. |
| 98 ShA-GS | 98 Shore A | Polyurethane | -30 C to +90 C | Standard high-dynamic positioning drives and machine spindles. |
| 64 ShD-H-GS | 64 Shore D | Hytrel | -50 C to +120 C | Designed for planetary gears and backlash-free gear drives. |
Catalogue notes
- Misalignment offsets in extract B are stated for 64 ShD spider, not 98 ShA-GS.
- Engineering values on this page follow the KTR catalogue tables cited in the specifications section.
- Maximum coupling torque is shown only when explicitly tabulated in the catalogue source.
